Copper foil tape series
Using soft copper foil and Mylar copper foil as the base material, coated with acrylic glue (acrylic glue), it has good anti-electromagnetic (EMI) performance, strong adhesion, good electrical conductivity and good heat resistance.
Including: pure copper foil, single conductive copper foil, double conductive copper foil, self-adhesive copper foil, conductive copper foil, adhesive copper foil.
Single conductive copper foil
Self-adhesive copper foil Mylar
Single conductive
copper foil
Pure copper foil
Self-adhesive
copper foil Mylar
Conductive
copper foil mylar
1. Pure copper foil: it has the function of shielding and conducting.
2. Single-conductor copper foil: conductive (non-conductive plastic surface), shielding, fitting and fixing.
3. Double-conducting copper foil: conductive (shield conductive), shielding, fitting and fixing.
4. Self-adhesive copper foil Mylar: Coat self-adhesive (non-conductive surface) on the copper foil surface, with shielding and insulation effect.
5. Conductive copper foil Mylar: Apply conductive adhesive (adhesive conductive) on the copper foil surface, which has the functions of shielding,
insulation and conductivity.
6. Adhesive copper foil: The copper foil is attached with horse-drawn tape, which has the functions of insulation, conductivity and shielding, and can be soldered.
KAPTON(金手指) KAPTON(金手指) 应用举例

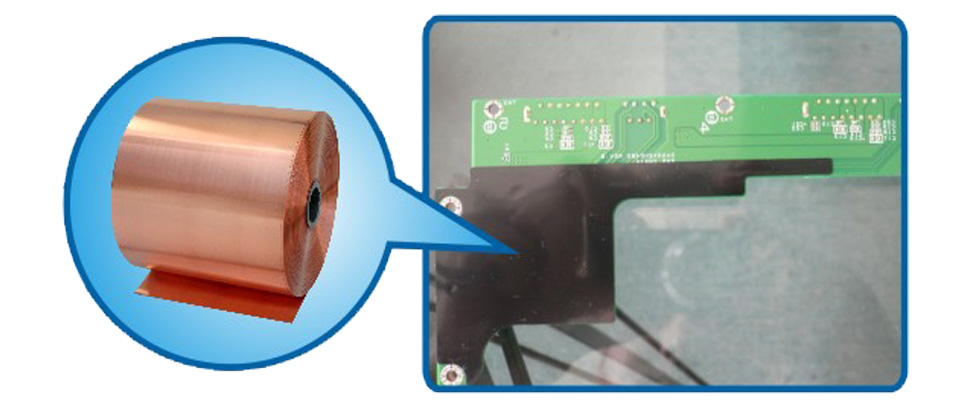

Pure copper foil Pure copper foil application examples
KAPTON(金手指) KAPTON(金手指) 应用举例

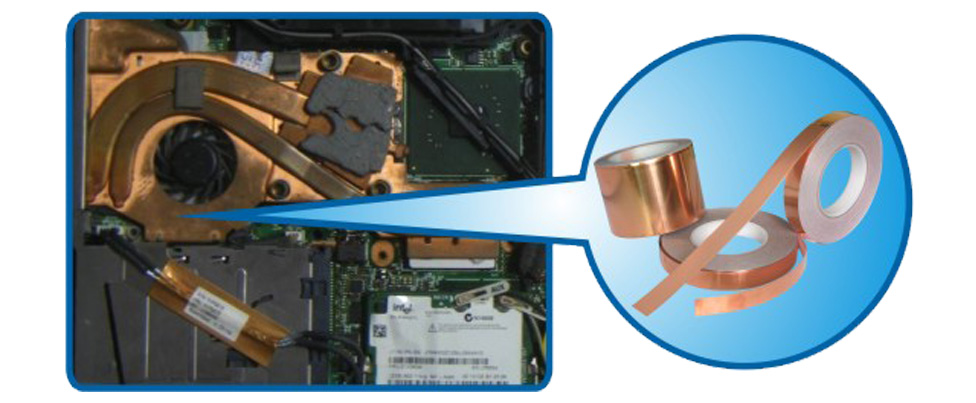

Single conductive copper foil Application examples of single conductive copper foil
绿色胶带 绿色胶带应用举例

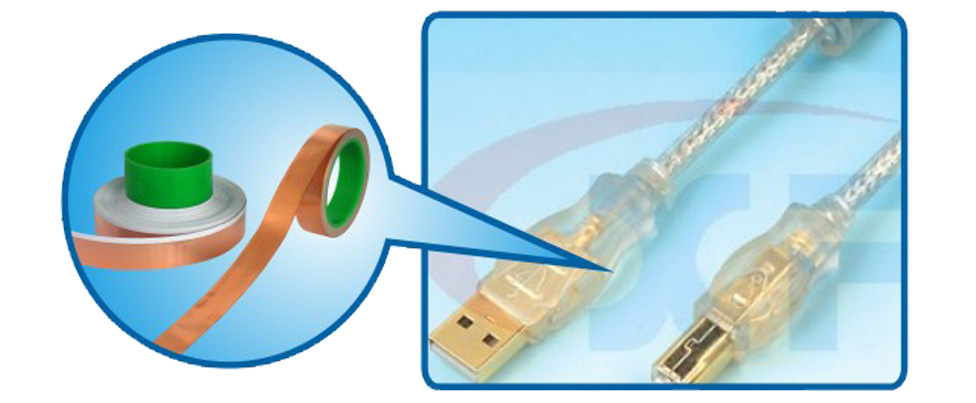

Double-conducting copper foil Double conductive copper foil application case

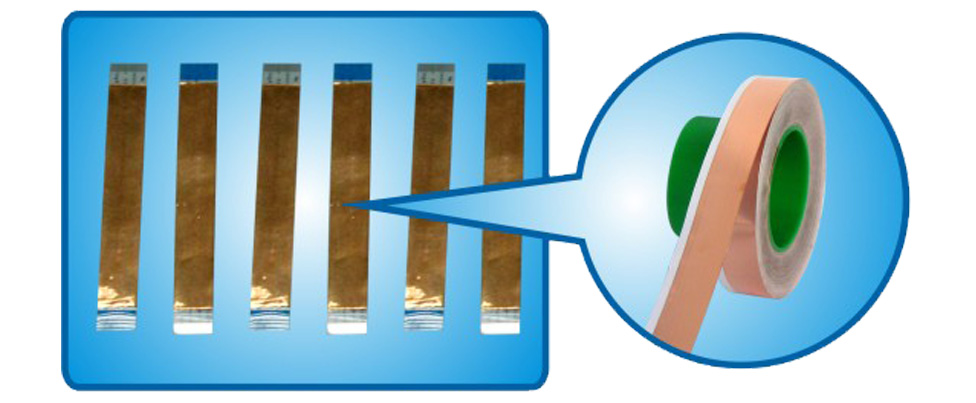

Self-adhesive copper foil Mylar Self-adhesive copper foil Mylar application case

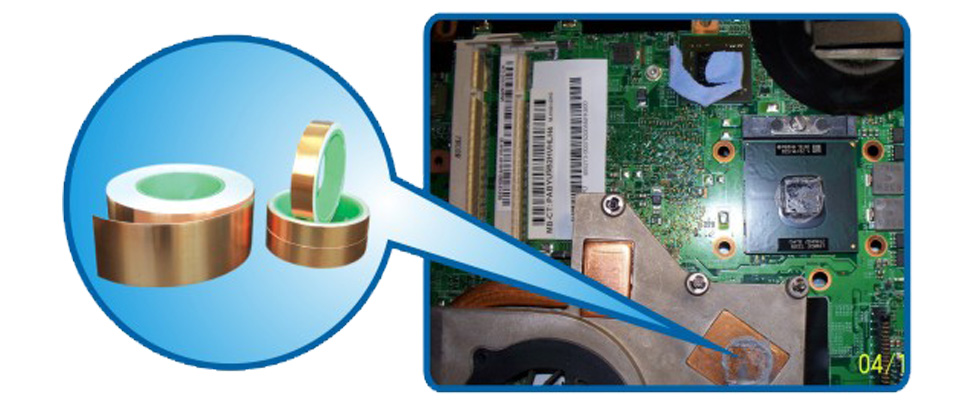

Conductive copper foil mylar Conductive copper foil Mylar application case

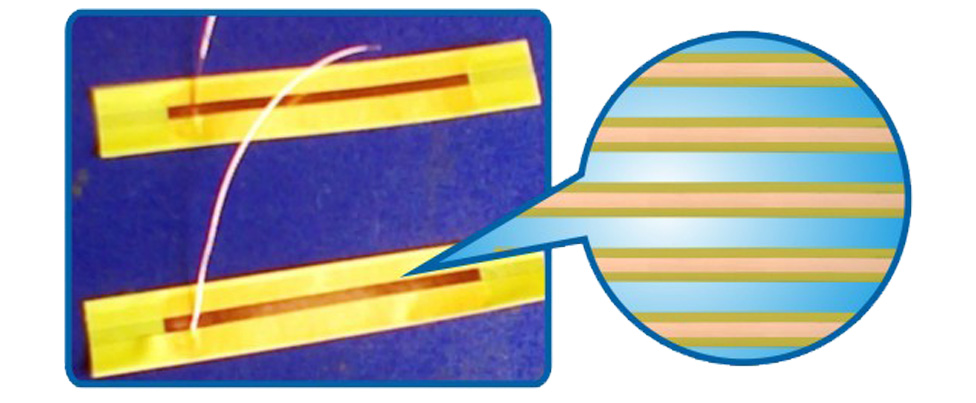

Adhesive copper foil Mylar Adhesive copper foil Mylar case
Product Features
Anti-electromagnetic (EMI) interference can effectively isolate the influence of electromagnetic waves.
With strong adhesive force and good electrical conductivity, it can be cut into various specifications according to customer requirements.
It has good heat resistance, good effect on point magnetic shielding, and good performance for electrostatic discharge after grounding.The composite material can exert good adhesion to the adhesive without primer treatment.
Product Usage
Used in digital cameras, mobile phones, DVDs, HVDs, FFCs of computers, wire assemblies and cables, and power supplies.
It is suitable for all kinds of electronic products such as transformers, mobile phones, computers, PDAs, PDPs, LCD monitors, notebook computers, copiers, etc. where electromagnetic shielding is required.Eliminate electromagnetic (EMI) interference and isolate electromagnetic waves from harming the human body.
|
Product category |
Product ID |
Thickness (mm) |
Substrate | Glue |
Peel force (kgf/25mm) |
Surface resistance(Ω) |
Electromagnetic wave Occlusion rate （500MHZ/dB） |
Anti-tension （kg/25mm) |
Retentivity (H/kg) |
|
| Copper foil | Rubber surface | |||||||||
| Pure copper foil | HT-0125C | 0.025/0.05 | Rolled copper foil | / | / | 0.02~0.05 | / | 80-105 | ≥6 | / |
| HT-0150C | ||||||||||
|
Product category |
Product ID |
Thickness (mm) |
Substrate | Glue |
Peel force (kgf/25mm) |
Surface resistance(Ω) |
Electromagnetic wave Occlusion rate （500MHZ/dB） |
Anti-tension （kg/25mm) |
Retentivity (H/kg) |
|
| Copper foil | Rubber surface | |||||||||
|
Single conductive copper foil |
HT-0125D | 0.06/0.08 |
Rolled copper foil |
Acrylic | ≥1.0 | 0.02~0.05 | / | 80-105 | ≥6 | ≥24 |
| HT-0150D | ||||||||||
|
Product category |
Product ID |
Thickness (mm) |
Substrate | Glue |
Peel force (kgf/25mm) |
Surface resistanceΩ) |
Electromagnetic wave Occlusion rate （500MHZ/dB） |
Anti-tension （kg/25mm) |
Retentivity (H/kg) |
|
| Copper foil | Rubber surface | |||||||||
|
Double-conducting copper foil |
HT-0125S | 0.6/0.08 |
Rolled copper foil |
Acrylic Conductive plastic |
≥0.8 | 0.02~0.05 | <0.05 | 80-105 | ≥6 | ≥24 |
| HT-0150S | ||||||||||
|
Product category |
Product ID |
Thickness (mm) |
Substrate | Glue |
Peel force (kgf/25mm) |
Surface resistance(Ω) |
Electromagnetic wave Occlusion rate （500MHZ/dB） |
Anti-tension （kg/25mm) |
Retentivity (H/kg) |
|
| Copper foil | Rubber surface | |||||||||
|
Self-adhesive copper foil Mylar |
HT-0135DM | 0.06/0.12 |
PET+ Rolled copper foil |
Acrylic | ≥0.8 | / | / | 80-105 | ≥6 | ≥24 |
| HT-0185DM | ||||||||||
|
Product category |
Product ID |
Thickness (mm) |
Substrate | Glue |
Peel force (kgf/25mm) |
Surface resistance(Ω) |
Electromagnetic wave Occlusion rate （500MHZ/dB） |
Anti-tension （kg/25mm) |
Retentivity (H/kg) |
|
| Copper foil | Rubber surface | |||||||||
|
Conductive copper foil mylar |
HT-0135SM | 0.06/0.12 |
PET+ Rolled copper foil |
Acrylic conductive adhesive |
≥0.8 | / | <0.05 | 80-105 | ≥6 | ≥24 |
| HT-0175SM | ||||||||||
|
Product category |
Product ID |
Thickness (mm) |
Substrate | Glue |
Peel force (kgf/25mm) |
Surface resistance(Ω) |
Electromagnetic wave Occlusion rate （500MHZ/dB） |
Anti-tension （kg/25mm) |
Retentivity (H/kg) |
|
| Copper foil | Rubber surface | |||||||||
|
Adhesive copper foil |
HT-0125CMD | 0.075/0.125 |
Copper foil + Mara tape |
/ | / | 0.02 | / | / | / | / |
| HT-0125CMS | ||||||||||
| product category | Pure copper foil | ||
| Product ID | HT-0125C | HT-0150C | |
|
Thickness (mm) |
0.025/0.05 | ||
| Substrate | Rolled copper foil | ||
| Glue | / | ||
|
Peel force (kgf/25mm) |
/ | ||
|
Surface impedance （Ω） |
Copper foil |
0.02~0.05 | |
| Rubber surface | / | ||
|
Electromagnetic wave shielding rate (500MHZ/dB) |
80-105 | ||
|
Anti-tension (kg/25mm) |
≥6 | ||
|
Retentivity (H/kg) |
/ | ||
| product category | Single conductive copper foil | ||
| Product ID | HT-0125D | HT-0150D | |
|
Thickness (mm) |
0.06/0.08 | ||
| Substrate | Rolled copper foil | ||
| Glue | Acrylic | ||
|
Peel force (kgf/25mm) |
≥1.0 | ||
|
Surface impedance （Ω） |
Copper foil |
0.02~0.05 | |
| Rubber surface | / | ||
|
Electromagnetic wave shielding rate (500MHZ/dB) |
80-105 | ||
|
Anti-tension (kg/25mm) |
≥6 | ||
|
Retentivity (H/kg) |
≥24 | ||
| product category | Double-conducting copper foil | ||
| Product ID | HT-0125S | HT-0150S | |
|
Thickness (mm) |
0.06/0.08 | ||
| Substrate | Rolled copper foil | ||
| Glue |
Acrylic conductive adhesive |
||
|
Peel force (kgf/25mm) |
≥0.8 | ||
|
Surface impedance （Ω） |
Copper foil |
0.02~0.05 | |
| Rubber surface | <0.05 | ||
|
Electromagnetic wave shielding rate (500MHZ/dB) |
80-105 | ||
|
Anti-tension (kg/25mm) |
≥6 | ||
|
Retentivity (H/kg) |
≥24 | ||
| product category |
Self-adhesive copper foil Mylar |
||
| Product ID | HT-0135DM |
HT- 0185DM |
|
|
Thickness (mm) |
0.06/0.12 | ||
| Substrate |
PET+ Rolled copper foil |
||
| Glue | Acrylic | ||
|
Peel force (kgf/25mm) |
≥0.8 | ||
|
Surface impedance （Ω） |
Copper foil |
/ | |
| Rubber surface | / | ||
|
Electromagnetic wave shielding rate (500MHZ/dB) |
80-105 | ||
|
Anti-tension (kg/25mm) |
≥6 | ||
|
Retentivity (H/kg) |
≥24 | ||
| product category |
Conductive copper foil mylar |
||
| Product ID | HT-0135SM |
HT- 0175SM |
|
|
Thickness (mm) |
0.06/0.12 | ||
| Substrate |
PET+ Rolled copper foil |
||
| Glue |
Acrylic conductive adhesive |
||
|
Peel force (kgf/25mm) |
≥0.8 | ||
|
Surface impedance （Ω） |
Copper foil |
/ | |
| Rubber surface | 0.05 | ||
|
Electromagnetic wave shielding rate (500MHZ/dB) |
80-105 | ||
|
Anti-tension (kg/25mm) |
≥6 | ||
|
Retentivity (H/kg) |
≥24 | ||
| product category | Adhesive copper foil | ||
| Product ID | HT-0125CMD | HT-0125CMS | |
|
Thickness (mm) |
0.075/0.125 | ||
| Substrate |
Copper foil + Mara tape |
||
| Glue | / | ||
|
Peel force (kgf/25mm) |
/ | ||
|
Surface impedance （Ω） |
Copper foil |
0.02 | |
| Rubber surface | / | ||
|
Electromagnetic wave shielding rate (500MHZ/dB) |
/ | ||
|
Anti-tension (kg/25mm) |
/ | ||
|
Retentivity (H/kg) |
/ | ||
